企业系统后端启动报错

SDLY_20250610 2025-08-05 16:58

•

  SDLY_20250610 (楼主)

  2025-08-05 17:01




  Error starting ApplicationContext. To display the condition evaluation report re-run your application with 'debug' enabled.

  2025-08-05 16:56:20.436 ERROR 4212 --- [           main] o.s.boot.SpringApplication               : Application run failed




  org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'workController' defined in file [E:\bladexspace\git_bladex_0721\bladex-link\BladeX-Boot\target\classes\org\springblade\flow\business\controller\WorkController.class]: Unsatisfied dependency expressed through constructor parameter 0: Error creating bean with name 'taskServiceBean' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration.class]: Unsatisfied dependency expressed through method 'taskServiceBean' parameter 0: Error creating bean with name 'processEngine' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration$AlreadyInitializedAppEngineConfiguration.class]: Unsatisfied dependency expressed through method 'processEngine' parameter 0: Error creating bean with name 'flowableAppEngine': FactoryBean threw exception on object creation

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:795)

  at org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(ConstructorResolver.java:237)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireConstructor(AbstractAutowireCapableBeanFactory.java:1375)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1212)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:562)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:522)

  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:337)

  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)

  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:335)

  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:975)

  at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:971)

  at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:625)

  at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:146)

  at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:754)

  at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:456)

  at org.springframework.boot.SpringApplication.run(SpringApplication.java:335)

  at org.springframework.boot.builder.SpringApplicationBuilder.run(SpringApplicationBuilder.java:149)

  at org.springblade.core.launch.BladeApplication.run(BladeApplication.java:59)

  at org.springblade.Application.main(Application.java:45)

  Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'taskServiceBean' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration.class]: Unsatisfied dependency expressed through method 'taskServiceBean' parameter 0: Error creating bean with name 'processEngine' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration$AlreadyInitializedAppEngineConfiguration.class]: Unsatisfied dependency expressed through method 'processEngine' parameter 0: Error creating bean with name 'flowableAppEngine': FactoryBean threw exception on object creation

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:795)

  at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:542)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1355)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1185)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:562)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:522)

  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:337)

  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)

  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:335)

  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)

  at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1443)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1353)

  at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:904)

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:782)

  ... 19 common frames omitted

  Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'processEngine' defined in class path resource [org/flowable/spring/boot/ProcessEngineServicesAutoConfiguration$AlreadyInitializedAppEngineConfiguration.class]: Unsatisfied dependency expressed through method 'processEngine' parameter 0: Error creating bean with name 'flowableAppEngine': FactoryBean threw exception on object creation

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:795)

  at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:542)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1355)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1185)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:562)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:522)

  at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:337)

  at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)

  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:335)

  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)

  at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1443)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1353)

  at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:904)

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:782)

  ... 33 common frames omitted

  Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'flowableAppEngine': FactoryBean threw exception on object creation

  at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:188)

  at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.getObjectFromFactoryBean(FactoryBeanRegistrySupport.java:124)

  at org.springframework.beans.factory.support.AbstractBeanFactory.getObjectForBeanInstance(AbstractBeanFactory.java:1867)

  at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.getObjectForBeanInstance(AbstractAutowireCapableBeanFactory.java:1296)

  at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:347)

  at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:200)

  at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:254)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1443)

  at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1353)

  at org.springframework.beans.factory.support.ConstructorResolver.resolveAutowiredArgument(ConstructorResolver.java:904)

  at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:782)

  ... 47 common frames omitted

  Caused by: org.flowable.common.engine.api.FlowableException: no flowable tables in db. set

  at org.flowable.engine.impl.db.ProcessDbSchemaManager.schemaCheckVersion(ProcessDbSchemaManager.java:59)

  at org.flowable.engine.impl.SchemaOperationsProcessEngineBuild.execute(SchemaOperationsProcessEngineBuild.java:51)

  at org.flowable.engine.impl.SchemaOperationsProcessEngineBuild.execute(SchemaOperationsProcessEngineBuild.java:28)

  at org.flowable.engine.impl.interceptor.CommandInvoker$1.run(CommandInvoker.java:72)

  at org.flowable.engine.impl.interceptor.CommandInvoker.executeOperation(CommandInvoker.java:176)

  at org.flowable.engine.impl.interceptor.CommandInvoker.executeOperations(CommandInvoker.java:121)

  at org.flowable.engine.impl.interceptor.CommandInvoker.execute(CommandInvoker.java:77)

  at org.flowable.engine.impl.interceptor.BpmnOverrideContextInterceptor.execute(BpmnOverrideContextInterceptor.java:26)

  at org.flowable.common.engine.impl.interceptor.TransactionContextInterceptor.execute(TransactionContextInterceptor.java:53)

  at org.flowable.common.engine.impl.interceptor.CommandContextInterceptor.execute(CommandContextInterceptor.java:105)

  at org.flowable.common.spring.SpringTransactionInterceptor.lambda$execute$0(SpringTransactionInterceptor.java:57)

  at org.springframework.transaction.support.TransactionTemplate.execute(TransactionTemplate.java:140)

  at org.flowable.common.spring.SpringTransactionInterceptor.execute(SpringTransactionInterceptor.java:57)

  at org.flowable.common.engine.impl.interceptor.LogInterceptor.execute(LogInterceptor.java:30)

  at org.flowable.common.engine.impl.cfg.CommandExecutorImpl.execute(CommandExecutorImpl.java:56)

  at org.flowable.engine.impl.ProcessEngineImpl.(ProcessEngineImpl.java:83)

  at org.flowable.engine.impl.cfg.ProcessEngineConfigurationImpl.buildProcessEngine(ProcessEngineConfigurationImpl.java:874)

  at org.flowable.spring.SpringProcessEngineConfiguration.buildProcessEngine(SpringProcessEngineConfiguration.java:76)

  at org.flowable.engine.spring.configurator.SpringProcessEngineConfigurator.initProcessEngine(SpringProcessEngineConfigurator.java:58)

  at org.flowable.engine.spring.configurator.SpringProcessEngineConfigurator.configure(SpringProcessEngineConfigurator.java:47)

  at org.flowable.common.engine.impl.AbstractEngineConfiguration.configuratorsAfterInit(AbstractEngineConfiguration.java:1070)

  at org.flowable.app.engine.AppEngineConfiguration.init(AppEngineConfiguration.java:239)

  at org.flowable.app.engine.AppEngineConfiguration.buildAppEngine(AppEngineConfiguration.java:195)

  at org.flowable.app.spring.SpringAppEngineConfiguration.buildAppEngine(SpringAppEngineConfiguration.java:66)

  at org.flowable.app.spring.AppEngineFactoryBean.getObject(AppEngineFactoryBean.java:58)

  at org.flowable.app.spring.AppEngineFactoryBean.getObject(AppEngineFactoryBean.java:31)

  at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:182)

  ... 57 common frames omitted

  Caused by: org.apache.ibatis.exceptions.PersistenceException:

  ### Error querying database.  Cause: java.sql.SQLSyntaxErrorException: Table 'bladex_boot.ACT_GE_PROPERTY' doesn't exist

  ### The error may exist in org/flowable/common/db/mapping/entity/Property.xml

  ### The error may involve defaultParameterMap

  ### The error occurred while setting parameters

  ### SQL: select VALUE_ from ACT_GE_PROPERTY where NAME_ = 'schema.version'

  ### Cause: java.sql.SQLSyntaxErrorException: Table 'bladex_boot.ACT_GE_PROPERTY' doesn't exist

  at org.apache.ibatis.exceptions.ExceptionFactory.wrapException(ExceptionFactory.java:30)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:156)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:147)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:142)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectOne(DefaultSqlSession.java:75)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectOne(DefaultSqlSession.java:69)

  at org.flowable.engine.impl.db.ProcessDbSchemaManager.getDbVersion(ProcessDbSchemaManager.java:84)

  at org.flowable.engine.impl.db.ProcessDbSchemaManager.schemaCheckVersion(ProcessDbSchemaManager.java:40)

  ... 83 common frames omitted

  Caused by: java.sql.SQLSyntaxErrorException: Table 'bladex_boot.ACT_GE_PROPERTY' doesn't exist

  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:121)

  at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:122)

  at com.mysql.cj.jdbc.ClientPreparedStatement.executeInternal(ClientPreparedStatement.java:912)

  at com.mysql.cj.jdbc.ClientPreparedStatement.execute(ClientPreparedStatement.java:354)

  at com.alibaba.druid.filter.FilterChainImpl.preparedStatement_execute(FilterChainImpl.java:3462)

  at com.alibaba.druid.filter.FilterEventAdapter.preparedStatement_execute(FilterEventAdapter.java:434)

  at com.alibaba.druid.filter.FilterChainImpl.preparedStatement_execute(FilterChainImpl.java:3460)

  at com.alibaba.druid.proxy.jdbc.PreparedStatementProxyImpl.execute(PreparedStatementProxyImpl.java:158)

  at com.alibaba.druid.pool.DruidPooledPreparedStatement.execute(DruidPooledPreparedStatement.java:483)

  at org.apache.ibatis.executor.statement.PreparedStatementHandler.query(PreparedStatementHandler.java:65)

  at org.apache.ibatis.executor.statement.RoutingStatementHandler.query(RoutingStatementHandler.java:80)

  at org.apache.ibatis.executor.SimpleExecutor.doQuery(SimpleExecutor.java:65)

  at org.apache.ibatis.executor.BaseExecutor.queryFromDatabase(BaseExecutor.java:336)

  at org.apache.ibatis.executor.BaseExecutor.query(BaseExecutor.java:158)

  at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:110)

  at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:90)

  at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:154)

  ... 89 common frames omitted




  回答: 2025-08-05 17:01

  里面问题不是数据表问题，文档内容不详细，学习成本高啊。

  作者追问:2025-08-05 17:01

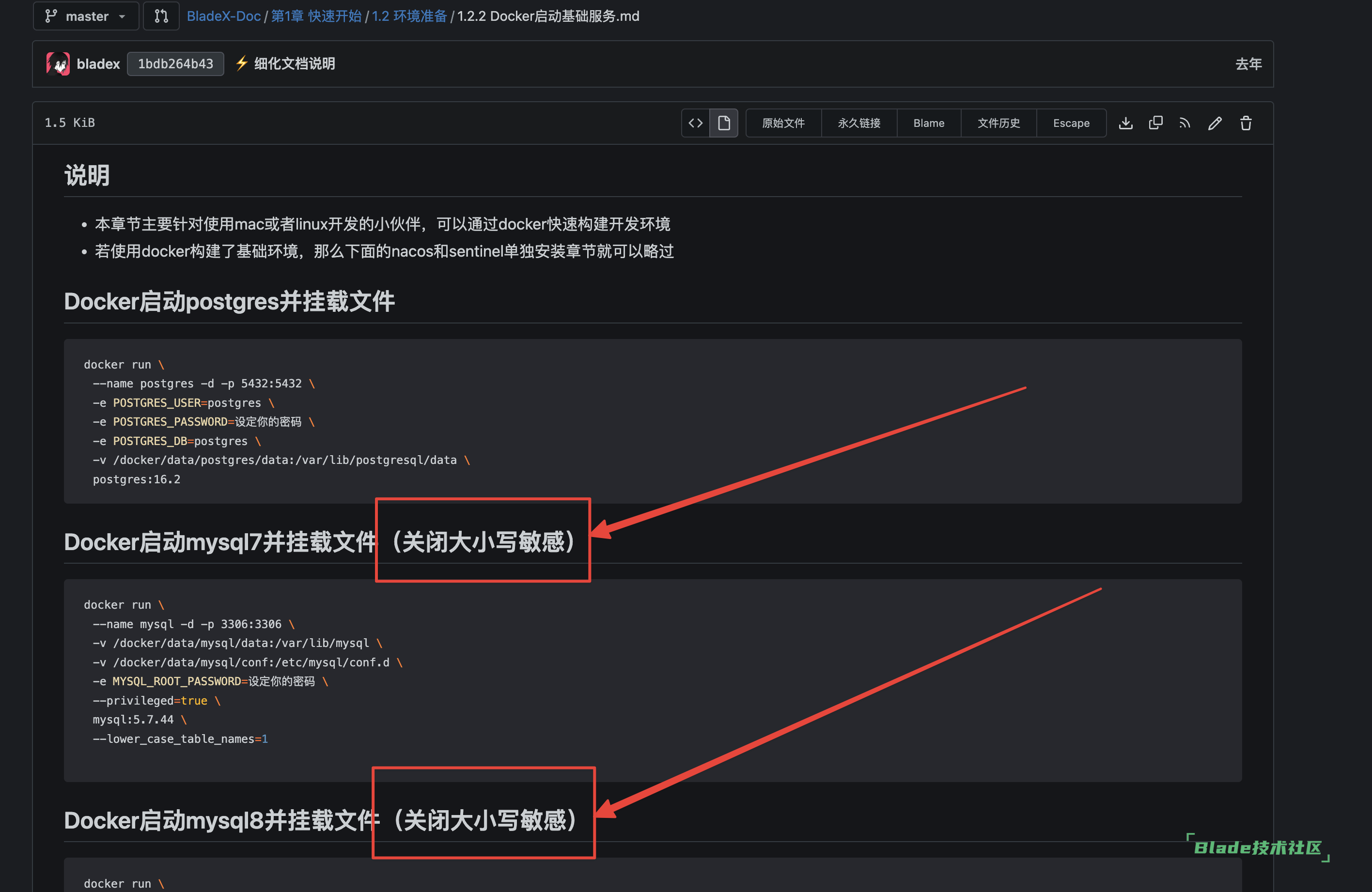

  看下文档，运行的时候关闭大小写敏感。如果没用docker，关闭方式可百度查下
